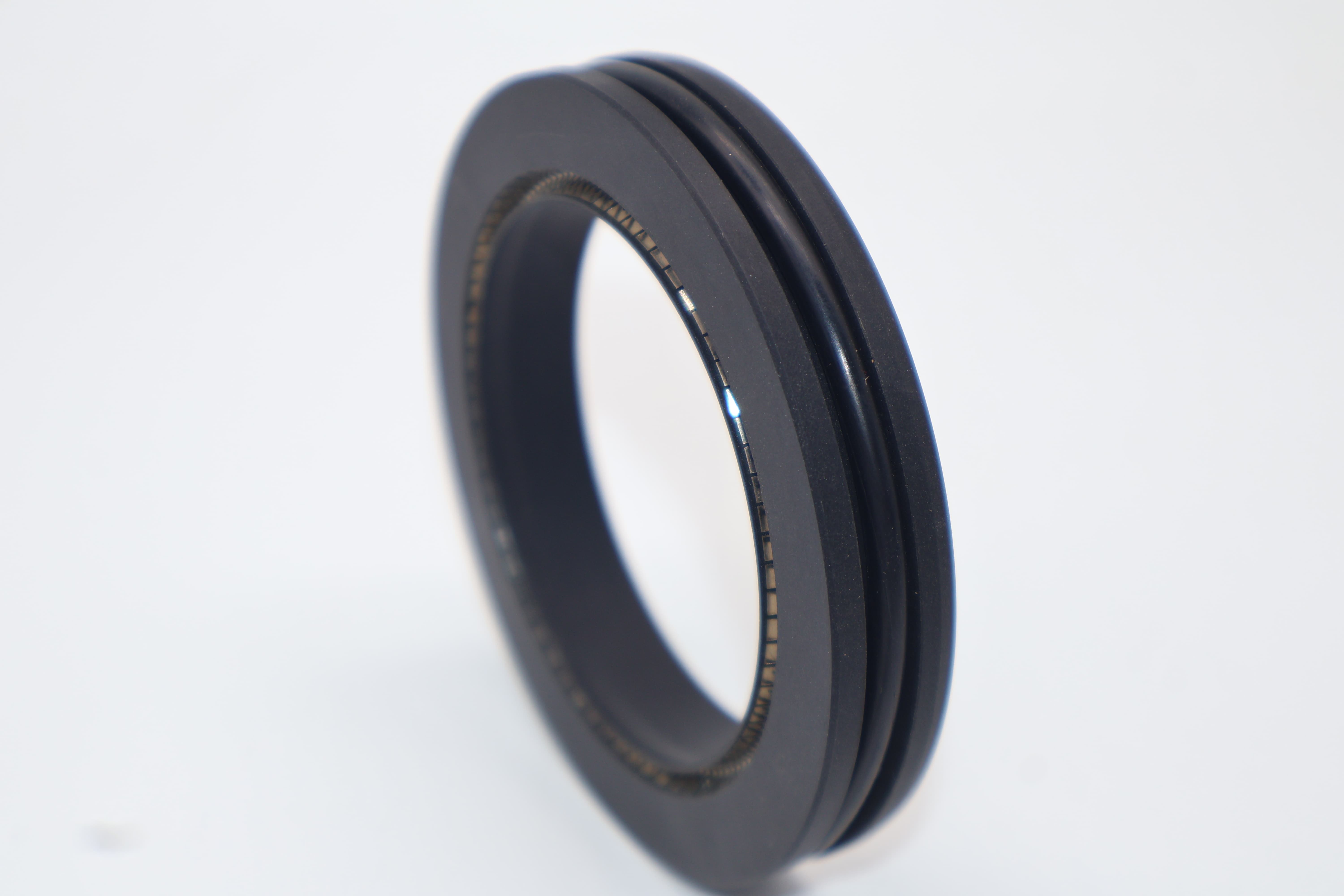

Special PTFE V-Spring Energized Sealing Rings

Commercial Terms of Products:

Overview

Tesel Seal designs and manufactures special PTFE V-spring energized sealing rings engineered for multi-directional sealing in large cross-section applications. These seals ensure reliable sealing across multiple axes, including directions perpendicular to motion, in complex dynamic environments.


Each sealing ring combines a PTFE or high-performance polymer jacket with a stainless steel or alloy V-shaped spring and an O-ring, delivering consistent sealing force, excellent chemical resistance, and enhanced wear performance under dynamic conditions.


Designed for slow rotary and high-speed reciprocating motion, these seals operate typically from -50°C to 250°C depending on material selection. Tesel Seal provides customized sealing solutions for applications in semiconductor, electronics, precision machinery, and chemical processing industries.

Technical Specifications

Key Features and Performance Advantages

• Multi-Directional Sealing – Designed to seal not only along the primary motion axis but also perpendicular to motion, ensuring comprehensive containment.


• Large Cross-Section Capability – Suitable for applications requiring wide or oversized sealing interfaces without compromising performance.


• Material Versatility – PTFE or high-performance polymers provide chemical resistance, low friction, and mechanical durability.


• Spring-Energized Sealing – Stainless steel or alloy V-shaped springs maintain continuous radial sealing force, compensating for wear, pressure variations, and thermal expansion.


• O-Ring Integration – Paired O-rings enhance sealing performance, provide redundancy, and prevent leakage in critical applications.


• Temperature Flexibility – Compatible with a wide temperature range depending on O-ring selection, typically -50°C to 250°C.


• Low Friction and Wear Resistance – Optimized design reduces wear during slow rotation or fast reciprocating motion, extending service life.


• Reliable Performance under Dynamic Conditions – Maintains sealing integrity under motion-induced stress and multi-axis pressure.

Product Structure and Design

Tesel Seal special PTFE V-spring energized sealing rings are designed as advanced multi-component systems for demanding multi-directional sealing applications:


• PTFE or high-performance polymer jacket for primary sealing and chemical resistance
• Stainless steel or alloy V-shaped spring for continuous radial sealing force
• O-ring for secondary sealing and redundancy
• Multi-directional sealing lip structure for perpendicular sealing needs


This combination ensures stable sealing, reduces leakage risk, and maintains performance under complex dynamic motion scenarios.

Applications

• Rotary Equipment – Seals in slow-rotation shafts or actuators where perpendicular leakage prevention is required.
• Reciprocating Motion Systems – Used in linear actuators, piston assemblies, and similar machinery with multi-axis sealing needs.
• Semiconductor & Electronics – Maintains contamination-free sealing in precision equipment.
• Chemical Processing – Multi-directional containment in aggressive chemical environments.
• Large-Cross-Section Assemblies – Effective sealing in valves, pumps, and vessels with oversized interfaces.

Design Considerations

• Pressure and motion requirements: Ensure the V-ring spring force and O-ring selection match dynamic and static pressures.
• Temperature range: Confirm O-ring and polymer compatibility across operating temperature extremes.
• Media compatibility: Select PTFE or polymer jacket and O-ring materials resistant to chemical exposure.
• Installation constraints: Account for cross-section size, shaft or bore geometry, and motion direction.
• Multi-lip design: Required for high-pressure or multi-axis sealing redundancy.

Failure Analysis and Optimization

• Wear and Abrasion – Dynamic motion can generate friction; selecting reinforced polymers and proper spring tension mitigates wear.
• Chemical Degradation – PTFE and high-performance polymers resist most aggressive chemicals; proper O-ring selection is critical.
• Temperature Effects – High or low extremes may affect elasticity; material choice ensures stability.
• Misalignment or Installation Error – Correct installation maintains sealing performance and reduces leakage risk.

Optimizing involves material selection, spring calibration, multi-lip configuration, and thorough field testing under representative motion conditions.

Common Questions and Answers

• Can these seals handle fast reciprocating motion? – Yes, designed for high-speed reciprocating as well as slow rotational movements.


• What materials are used for aggressive chemicals? – PTFE, PEEK, or other high-performance polymers paired with compatible O-rings.


• Are these seals suitable for large cross-section applications? – Yes, specifically designed for oversized interfaces requiring multi-directional sealing.


• Is customization available? – Tesel Seal provides tailored designs for specific motion, pressure, and chemical environments.
