High-Speed, High-Frequency PTFE Sealing Rings

Commercial Terms of Products:

Overview

Tesel Seal provides high-performance high-speed, high-frequency sealing rings engineered for precision dispensing equipment, including cold and hot glue systems. These seals ensure reliable separation between air and adhesive, preventing contamination and maintaining consistent dispensing performance.


Designed for temperatures from -80°C to 300°C and compact applications down to 1 mm inner diameter, the sealing system combines PTFE, high-performance polymers, or PEEK with stainless steel V-shaped or C-shaped springs.


Widely used in semiconductor, electronics, and chip manufacturing equipment, these seals deliver low friction, clean operation, and long-term stability under high-frequency motion. Custom designs are available based on your operating conditions.

Technical Specifications

Key Features and Performance Advantages

• Temperature Compatibility – Engineered for cold glue (-80°C to -60°C) and hot glue (up to 300°C) applications, maintaining sealing integrity under extreme thermal conditions.

• Low-Pressure Operation – Optimized for standard atmospheric pressure conditions in dispensing equipment while ensuring effective air and adhesive separation.

• Compact Design – Suitable for extremely small diameters, down to 1 mm inner diameter, providing precision sealing for miniature dispensing systems.

• Material Versatility – PTFE, high-performance polymer, and PEEK jackets deliver chemical resistance, low friction, and durability against adhesives and contaminants.

• Spring-Energized Sealing – Stainless steel V-shaped or C-shaped springs maintain continuous radial sealing force to compensate for wear, thermal expansion, and mechanical stress.

• Air and Adhesive Separation – Prevents cross-contamination and ensures consistent dispensing performance, critical for high-yield semiconductor and electronic assembly.

• High-Frequency Reliability – Designed to withstand millions of actuation cycles without leakage or degradation, ensuring extended service life.

• Precision and Clean Operation – Minimizes particle generation, supporting cleanroom standards in semiconductor and electronics manufacturing.

• Customizable Multi-Lip Configurations – Optional multi-lip design increases sealing redundancy, providing extra safety margins for critical applications.

• Extended Service Life – Low-friction materials and precise spring energization reduce wear and maintenance requirements, ensuring optimal uptime.

Product Structure and Design

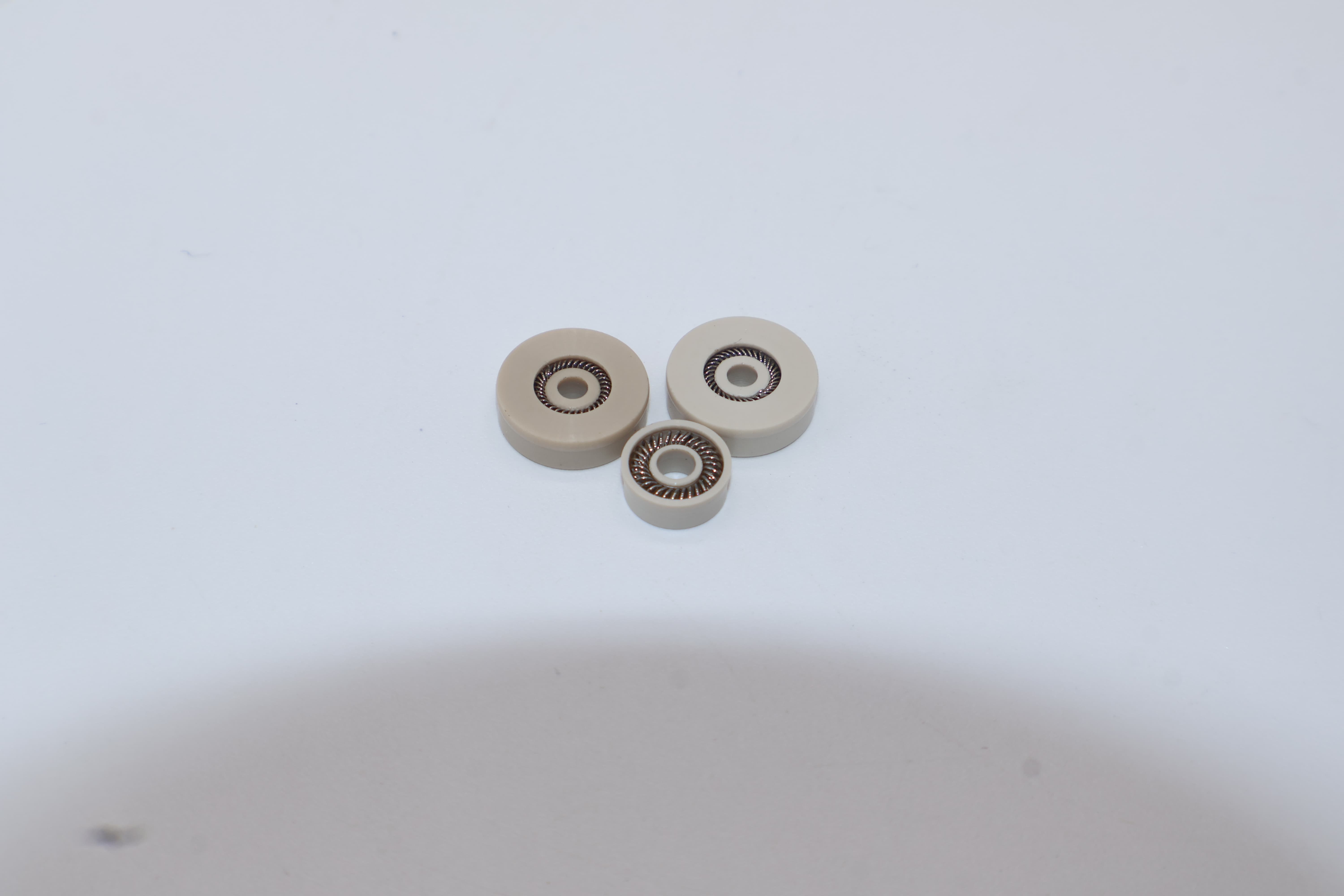

Tesel Seal high-speed, high-frequency sealing rings are composed of:

• PTFE, high-performance polymer, or PEEK jacket for chemical resistance and low friction

• Stainless steel V-shaped or C-shaped spring for continuous radial sealing force

• Multi-lip configuration for stable sealing under dynamic, high-frequency motion

This design ensures effective separation of air and adhesive, reliable performance in low-pressure dispensing applications, and long-term durability even under high-speed operation. The multi-lip structure ensures redundancy, minimizes leakage risk, and supports the integrity of highly sensitive processes in semiconductor and electronics industries.

Applications

Tesel Seal high-speed, high-frequency sealing rings are widely used in precision dispensing systems:

• Cold Glue Dispensing Equipment – Maintain separation of air and adhesive at low temperatures for consistent dosing and clean operation.

• Hot Glue Dispensing Equipment – Leak-tight sealing under high-temperature conditions ensures precise application of adhesives in automated production.

• Semiconductor Manufacturing – Critical in wafer handling, bonding, and chip assembly processes requiring ultra-clean, low-particle environments.

• Electronics Assembly – Applied in high-frequency dispensing of adhesives, solder pastes, encapsulants, and conformal coatings.

• Automated Chip Fabrication Processes – Maintain seal integrity during repetitive high-speed operations, ensuring process repeatability and yield.

• Precision Laboratory Equipment – Used in test and dispensing apparatus requiring miniature, highly reliable sealing.

Design Considerations

When selecting high-speed, high-frequency sealing rings, evaluate:

•Temperature compatibility – Material selection must match cold or hot glue operating ranges.

• Pressure conditions – Designed for low-pressure applications but must prevent air-glue mixing.

• Media compatibility – Adhesive type, viscosity, and chemical interaction with sealing material.

• Motion frequency – Seals must resist wear and maintain integrity during millions of cycles.

• Installation space – Compact diameters and tolerances must fit the dispensing assembly.

• Multi-lip structure – Optional configurations for high-redundancy, critical operations.

Failure Analysis and Optimization

Understanding common failure modes is essential:

• Wear from High-Frequency Motion – Repeated cycles can reduce sealing performance; proper spring energization reduces friction and wear.

• Material Degradation – PTFE, polymer, or PEEK jackets prevent chemical attack from adhesives and ensure thermal stability.

• Air-Adhesive Leakage – Multi-lip designs maintain separation and prevent contamination.

• Thermal Fatigue – Hot glue or high-speed operation can generate heat; material choice ensures resilience.

• Seal Misalignment – Installation tolerances must be precise to prevent leakage and maintain performance.

Optimized performance involves material selection, spring energization, multi-lip structures, and on-site validation.

Common Questions and Answers

• Can these seals handle both cold and hot glue? – Yes, materials and design are optimized for specific temperature ranges.

• What is the smallest size available? – Inner diameters can be manufactured down to 1 mm.

• Are they suitable for high-speed, high-frequency operation? – Yes, designed to endure rapid motion cycles reliably.

• Is customization available? – Tesel Seal can provide tailored designs for specific equipment, adhesives, and operating conditions.
