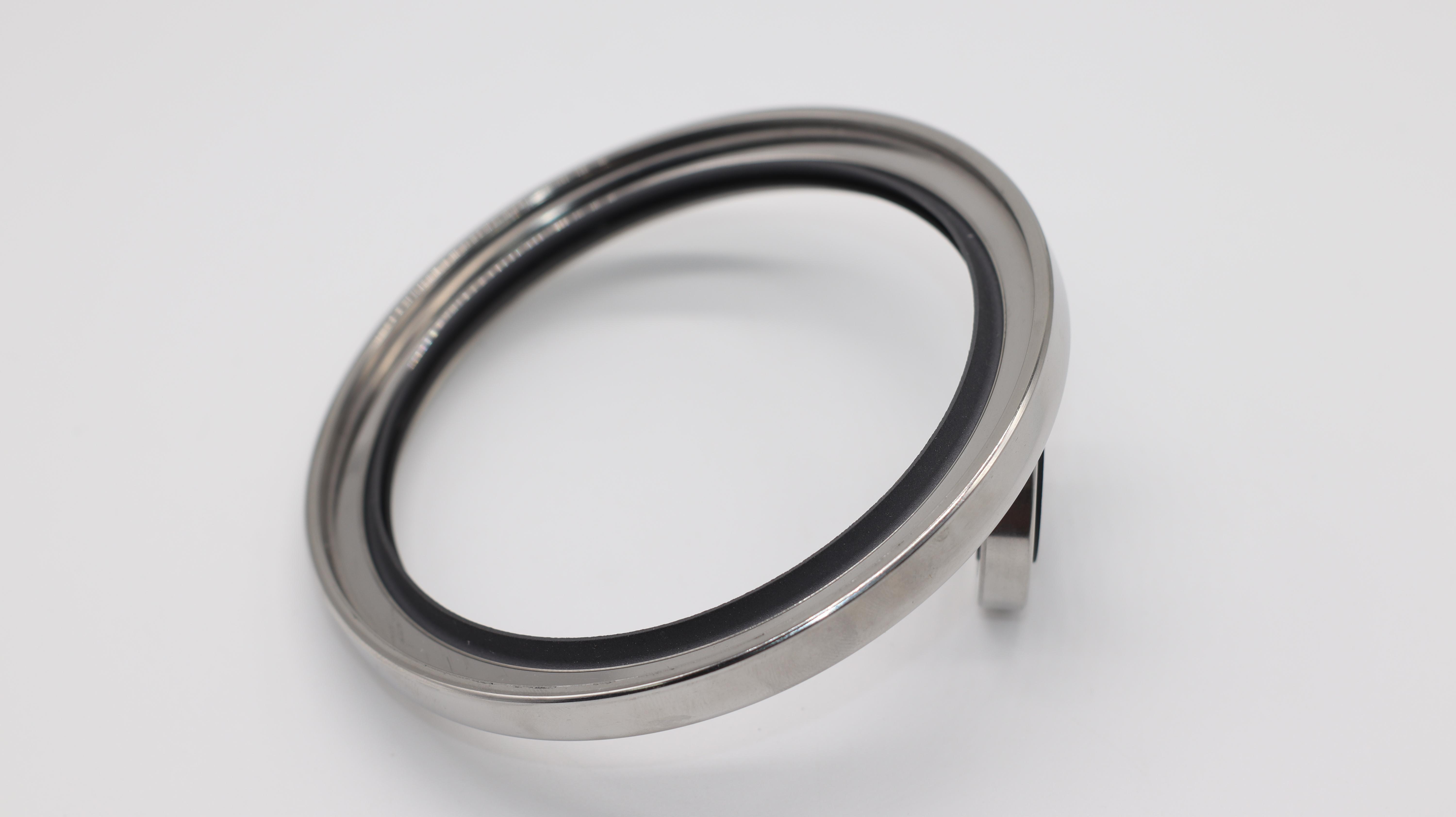

PTFE Rotary Shaft Seal

Commercial Terms of Products:

Overview

Tesel Seal designs and manufactures PTFE rotary shaft seals for high-speed, low-pressure applications. These seals deliver reliable performance under dynamic motion and continuous operation.

Featuring a PTFE sealing lip and stainless steel outer ring, they provide low friction, excellent chemical resistance, and stable sealing at surface speeds up to 90 m/s.

Ideal for compressors, vacuum pumps, and electric drive systems requiring long service life and minimal maintenance.

Technical Specifications

Key Features and Performance Advantages

• High-Speed Capability – Supports surface speeds up to 90 m/s, ideal for high-speed rotary applications.

• Low-Pressure Operation – Effective under pressures up to 1 MPa, suitable for vacuum and compressor systems.

• PTFE Lip Design – Reduces friction, ensures chemical resistance, and extends seal life in dynamic applications.

• Stainless Steel Outer Ring – Provides rigidity, dimensional stability, and secure installation within housings.

• Low Wear and Maintenance – Optimized geometry minimizes shaft wear and lowers operational downtime.

• Chemical and Environmental Compatibility – Performs reliably with air, inert gases, and low-viscosity fluids, while resisting contaminants.

• Wide Industrial Application – Utilized in vacuum pumps, compressors, aerospace actuators, marine shafts, motorsports, and automotive drive systems.

• Durable Dynamic Performance – Maintains sealing contact under continuous rotation, vibration, and surface irregularities.

• Temperature Tolerance – Functional across a broad operational range, accommodating moderate thermal expansion due to friction.

• Enhanced Sealing Geometry – Lip design prevents back-leakage and maintains uniform radial force for consistent sealing.

Product Structure and Design

Tesel Seal PTFE rotary shaft seals are designed as metal-reinforced PTFE lip seals:

• Stainless steel outer ring provides rigidity and secure housing fit
• PTFE sealing lip offers low friction, chemical resistance, and wear durability
• Optimized lip geometry ensures stable contact and leak prevention under rotation
• High-precision tolerances allow use in small-diameter shafts and high-speed assemblies

This construction ensures reliable sealing performance across variable operating conditions, balancing friction reduction, wear resistance, and leak control.

Applications

Tesel Seal PTFE rotary shaft seals are widely applied in high-speed, low-pressure environments:

• Vacuum Pumps – Ensure leak-tight operation, maintain stable vacuum levels, and reduce contamination risks in laboratory and industrial vacuum systems.

• Compressors – Provide reliable dynamic sealing at high rotation speeds, reducing wear and improving efficiency in rotary compressors.

• Aerospace Components – Used in actuators, control surfaces, and rotating joints where reliability under motion and vibration is critical.

• Marine and Shipbuilding – Applied in propeller shafts, auxiliary pumps, and other low-pressure rotating systems exposed to saltwater and varying temperatures.

• Motorsports – Supports racing engines and high-speed mechanical assemblies with minimal friction and thermal buildup.

• Automotive & EV Drivetrain Systems – Critical for torque transmission shafts, electric motor rotors, and hybrid systems where high-speed rotation and low leakage are required.

• Industrial Machinery – Applied in high-speed spindles, rotary dryers, and precision motion equipment for manufacturing.

Design Considerations

Key factors when selecting PTFE rotary shaft seals include:

• Surface Speed – Ensure seal lip material and geometry are compatible with shaft speed to minimize wear.
• Operating Pressure – Confirm the seal can handle system pressure without extrusion or leakage.
• Medium Compatibility – Evaluate air, gases, or low-viscosity fluid exposure for chemical resistance requirements.
• Temperature Conditions – Consider frictional heating, ambient temperatures, and thermal expansion.
• Shaft Surface Finish – Must be compatible with PTFE lip to prevent accelerated wear.
• Installation Constraints – Shaft diameter, housing depth, and gland tolerances should meet specifications.

Tesel Seal provides consultation on material selection, lip geometry optimization, and installation guidance for maximum performance.

Failure Analysis and Optimization

• Friction-Induced Wear – High-speed rotation can cause material wear on the shaft or seal lip. Using PTFE reduces friction and extends operational life.

• Thermal Effects – Continuous rotation generates heat. Metal reinforcement ensures dimensional stability and dissipates frictional heat.

• Leakage Under Dynamic Conditions – Proper installation and lip design maintain consistent contact pressure to prevent leaks.

• Chemical Attack – PTFE lip resists air contaminants, low-viscosity fluids, and mild chemical exposure.

• Installation Errors – Misalignment or incorrect gland depth can reduce performance; precise tolerances and Tesel Seal guidance mitigate this risk.

Optimizing sealing systems involves material selection, lip geometry refinement, and housing tolerance checks, validated under operational conditions to ensure reliable service life.

Common Questions and Answers

• What is the maximum speed PTFE rotary shaft seals can handle? – Up to 90 m/s under low-pressure operation.

• Are they compatible with EV drivetrain systems? – Yes, suitable for high-speed automotive electric drive applications.

• What materials are used in the seal? – PTFE lip and stainless steel outer ring for durability, chemical resistance, and low friction.

• Are these seals suitable for aerospace and marine applications? – Yes, designed for high-speed, low-pressure rotating joints in aerospace actuators and marine shafts.

• Can Tesel Seal provide customized solutions? – Yes, lip geometry, outer ring thickness, and material selection can be tailored to specific operating conditions.

Call to Action

Optimize High-Speed Shaft Sealing with PTFE Rotary Seals

• Send your drawings or specifications
• Get material and design recommendations
• Fast response within 24 hours
