Valve Stem Composite Sealing Rings

Commercial Terms of Products:

Overview

Tesel Seal designs and manufactures valve stem composite sealing rings engineered for API 6D valve stem sealing applications in demanding oil, gas, petrochemical, and LNG environments. These seals ensure reliable performance under high pressure, temperature variation, and aggressive media conditions.

Each sealing system features a multi-lip composite structure combining PTFE jackets, multiple PTFE V-ring elements, alloy springs, bottom backup rings, and top support rings. This configuration provides consistent sealing force, enhanced redundancy, and resistance to extrusion, wear, and chemical attack.

Operating from -60°C to 250°C and up to Class 2500 LB, with capability up to 20,000 psi in API 6A applications, Tesel Seal delivers customized sealing solutions for pumps, valves, and pipeline systems in critical energy and LNG applications.

Technical Specifications

Key Features and Performance Advantages

• Wide Temperature Capability – Reliable sealing from -60°C to 250°C, suitable for cryogenic LNG and high-temperature petrochemical processes.


• High Pressure Performance – Supports pressures up to Class 2500 LB and up to 20,000 psi in API 6A applications.


• Multi-Lip Composite Design – Multiple PTFE V-ring elements create redundant sealing interfaces for stability under dynamic conditions.


• Spring-Energized Sealing – Alloy springs provide continuous radial force, compensating for wear, thermal expansion, and pressure variations.


• Anti-Extrusion Protection – Bottom backup rings prevent extrusion under high pressure for improved durability.


• Top Support Ring Stability – Reinforced support rings maintain structural integrity and prevent deformation.


• Chemical Resistance – PTFE and alloy components resist hydrocarbons, LNG media, H2S, CO2, and other aggressive chemicals.


• Low Friction & Extended Service Life – Reduced wear on mating surfaces enhances reliability and reduces maintenance.

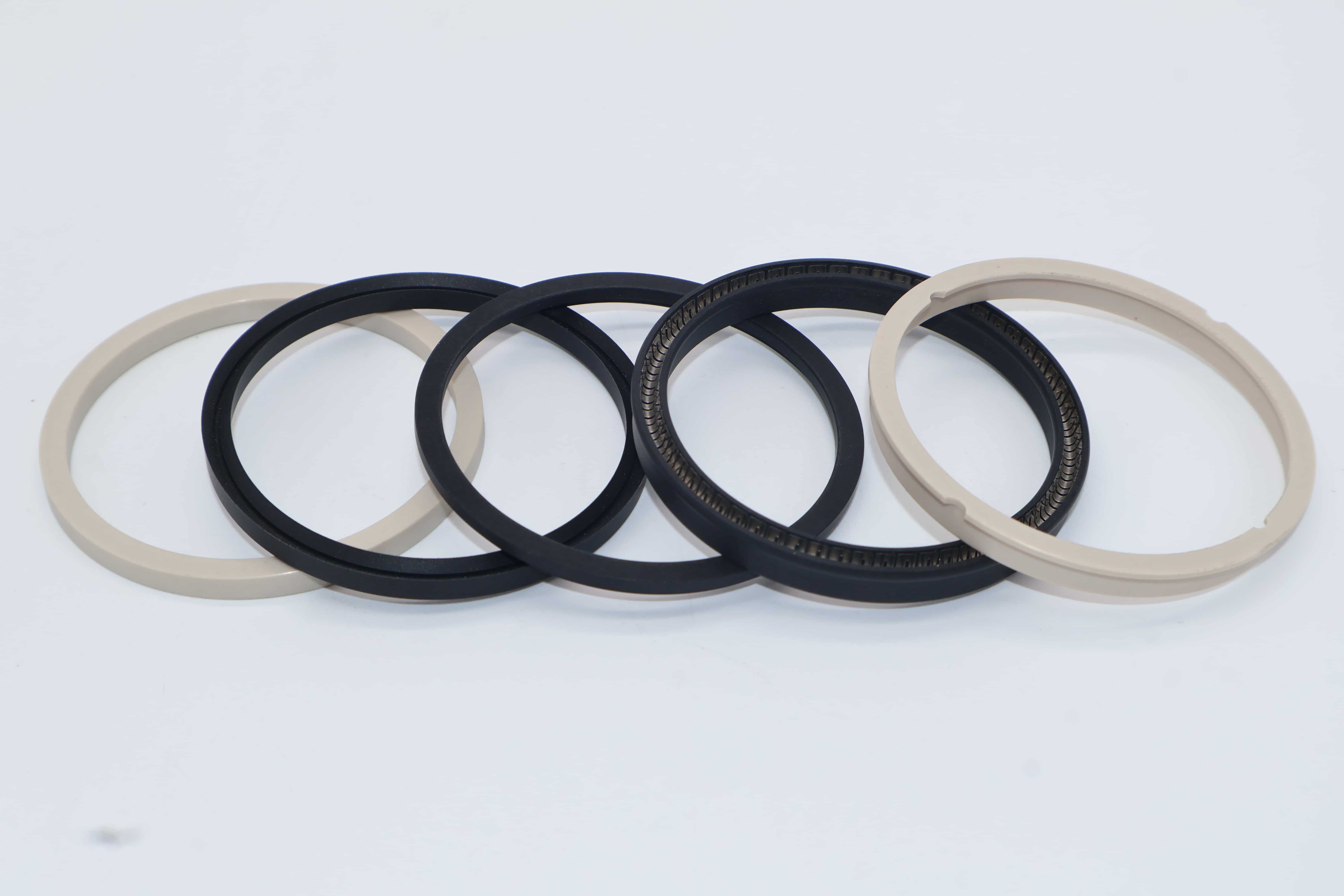

Product Structure and Design

Tesel Seal valve stem composite sealing rings are designed as multi-component systems for optimal performance in demanding applications:

• PTFE sealing jacket for chemical resistance and low friction
• Multiple PTFE V-ring sealing elements forming multi-lip redundancy
• Alloy spring to maintain continuous radial sealing force
• Bottom backup ring for anti-extrusion protection
• Top support ring for structural stability

This integrated design provides multiple sealing interfaces and maintains effective sealing pressure under varying operating conditions. Multi-lip redundancy ensures stable performance, reduces leakage risk, and improves reliability in high-pressure and critical applications.

Applications


Tesel Seal valve stem composite sealing rings are widely used in critical oil, gas, petrochemical, and LNG systems:

• Pipeline Valves (API 6D) – Maintain pressure containment and prevent leakage in high-pressure pipeline systems.

• Ball Valves (API 6A Applications) – Provide reliable sealing up to 20,000 psi in high-pressure valve applications.
• LNG Systems – Maintain integrity under cryogenic and low-temperature conditions.
• Petrochemical Pumps and Valves – Resist aggressive media and elevated temperatures in process equipment.
• Process Control Systems – Ensure safe and precise fluid regulation in control valves and pipeline equipment.

Design Considerations

When selecting valve stem composite sealing rings, consider:

• Pressure conditions – Maximum and cyclic pressures to prevent extrusion.
• Temperature range – Includes both cryogenic and high-temperature applications.
• Media compatibility – Hydrocarbons, LNG, H2S, CO2, and other chemicals.
• Sealing performance – Required API 6D or API 6A standard.
• Sealing structure – Multi-lip configurations recommended for critical/high-pressure applications.
• Installation constraints – Valve stem geometry, gland depth, and assembly space considerations.

Failure Analysis and Optimization

• Extrusion Under High Pressure – Backup rings prevent seal material from entering clearance gaps under extreme pressure.


• Wear of PTFE Components – Dynamic motion, friction, and repeated valve actuation can cause wear. Proper material selection and spring energization mitigate degradation.

• Thermal Fatigue – Temperature cycling can induce micro-cracks or reduce elasticity. Multi-lip design distributes stress to reduce fatigue effects.


• Chemical Degradation – Exposure to hydrocarbons, H2S, CO2, and other chemicals can damage seals. PTFE and alloy components ensure chemical resistance.


• Seal Misalignment or Installation Errors – Incorrect installation may reduce sealing efficiency. Tesel Seal provides precise design tolerances and guidance to ensure optimal performance.

Optimizing performance requires proper material selection, multi-lip configuration, and field validation under representative operating conditions.

Common Questions and Answers

• Why choose a multi-lip composite seal? – Provides multiple sealing interfaces, improves redundancy, and ensures stable performance under pressure and temperature variations.


• Can these seals be used in LNG applications? – Yes, materials and design maintain flexibility and integrity in cryogenic conditions.


• Do they handle high pressure? – Yes, up to 20,000 psi in API 6A applications, with backup rings to prevent extrusion.


• Is customization available? – Yes, Tesel Seal offers tailored designs based on valve geometry, media, and operating conditions.
